Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 12VDC
Industrial PoE+ Splitter Advantage
► Splits power and data from PoE Input
► One 12VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at PoE
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Industrial PoE+ Splitte Overview
LNK-INS301-12V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,
via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This
device saves the high cost of running separate electrical service to edge devices.
The LNK-INS301-12V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE
(Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors. The data transmission,
up to Gigabit speeds, with power output voltages of 12VDC, run simultaneously up to the Ethernet limit of
100 meters. Simple settings of the LNK-INS301-12V, make it a plug and play device, requiring no tools or
software configuration, and provides ease of use, with flexible installation and high reliability.
Industrial PoE+ Splitte Technical Indexes
| Power over Ethernet |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: | 1 (DC12V) (Vary on device’s power requirement; cannot be over 20 watts.) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Power Output: | 20W 12VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
| LED Indicators: |
| PWR: | 12VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |

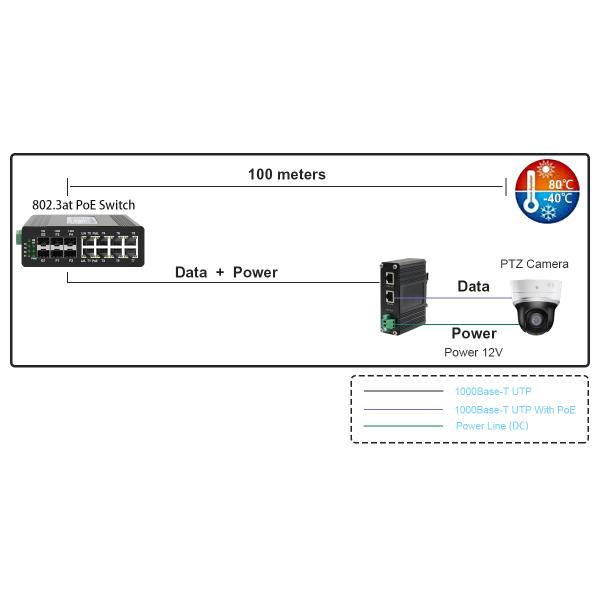

Industrial PoE+ Splitte Application
Industrial PoE+ Splitte Ordering Information
| Model | Description |
| LNK-INS301-12V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 12VDC, maximum output of 20W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
